The VGA/DVI/Video/SDI to DVI-D Converter enables you to convert and scale various types of analog video, as well as DVI-I video, for output on a single-link DVI-D display.
The professional broadcast-grade, plug-and-play converter is ideal for applications with a mix of old and new video equipment, including TV, film, and video production studios and departments.
It’s very useful for use with PC CPUs with older VGA video cards or video equipment with just analog video output. Even better, the box scales the analog signal from the source’s video card to a selectable size on a digital-only DVI screen.
The converter includes a BNC coax connector for plugging in a high-end SDI camera or HD-SDI (up to 720p) device, as well as connectors for Component (YPbPr ) video, S-Video, and Composite video input. Whether you have an older DVD player or legacy video recording equipment, this flexible converter fits the bill.
How it works.
The VGA/DVI/Video/SDI to DVI-D Converter digitizes the incoming signal and stores it in an internal video memory before displaying the video in a compatible format. The converter features more than 160 preset video formats in its internal table, and it enables you to configure DDC for optimizing source-to-display communications.
If the input signal corresponds to one of these formats, the signal will be automatically detected by the converter and the picture will be displayed. Or you can manually select the most suitable video mode, even if you don’t know the input signal.
Optimizing the picture settings for your input signal is easy. Simply use the included IR remote controller to navigate through an on-screen display (OSD) menu of controls for resolutions as well as video-correction tools. Adjust color, pixel clock, pixel phase, aspect ratio, and other settings, and set it up to scale the picture to the maximum value automatically. Or manually select non-standard and unsupported video modes.
You can also use the DVI input without the VGA adapter cable to attach a DVI-I device and scale the digital video for output on the DVI-D display.
For larger video applications with multiple display conversions, we offer a 19" rackmount kit (ACS2209A-RMK), which holds up to four ACS413A devices in 1U of space. Also available is the vertical DIN-rail mounting option (DRMVACU-S).
Output Resolution (Maximum) —1920 x 1200 at 60 Hz

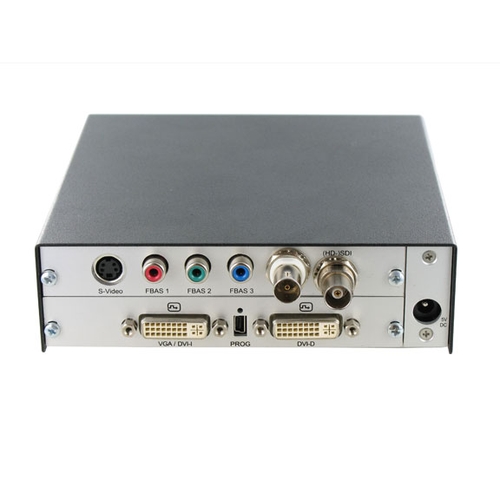

Connectors — Input:
(1) DVI-I F (adaptable to VGA with the included cable),
(3) RCA F (YPbPr Component or [3] Composite),
(1) mini DIN F (S-Video),
(1) BNC F (HD-SDI),
(1) BNC F (Composite);
Output: (1) DVI-D F;
Upgrade port: (1) mini-USB
Power — Input: 100–240 VAC, 50–60 Hz; Output: 5 VDC
Size — 4.3 x 14.3 x 10.3 cm (1.7"H X 5.6"W x 4"D)
Weight — 0.4 kg (0.9 lb.)
