MEG250AE: DIN-Rail mounting, 2 wires, 100Mbps, 12 - 48 VDC

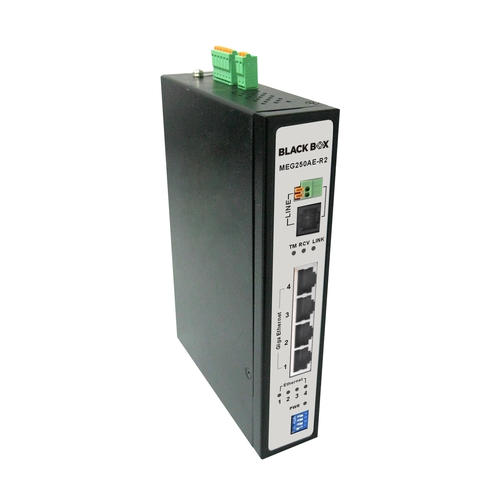

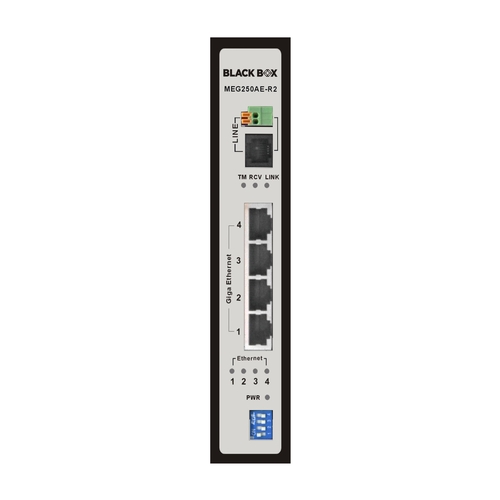

Photo may vary from actual product
VDSL2 Industrial Bridge
VDSL2 Industrial Bridge


VDSL2 Industrial Bridge


VDSL2 single port bridge equipped with four 10/100Mbps Ethernet ports.


  • VDSL2 Modem with 100Mbps symmetric throughput.
  • Long reach mode up to 1.9km using 24AWG phone wire
  • Integrated 4-port 10/100Mbps switch.
  • Large packet size up to 1536 bytes.
  • Easiest configuration – transmitter and receiver mode through DIP selectable.

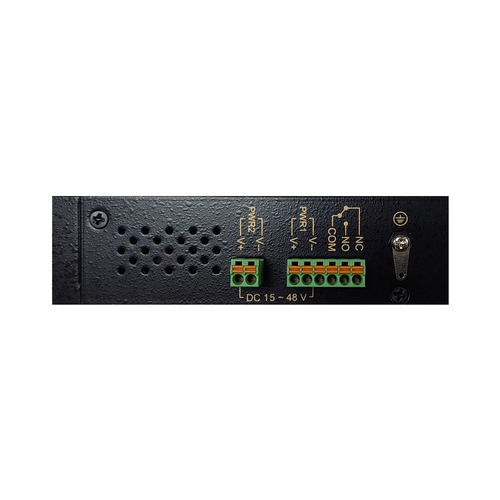

  • Direct DC input with redundant dual 12-48VDC power input.
  • Alarm relay contact (relay output 1A@24VDC).
  • Overload current protection.
  • Operating temperature from -20 – up to 70°C.
  • DIN-rail mountable IP30 metal case.
  • Warranty: 2-years

Share |
  Product       Code   Unit price   Quantity
DIN-Rail mounting
2 wires
100Mbps

12 - 48 VDC
  VDSL2 Industrial Bridge
VDSL2 Industrial Bridge
  MEG250AE
On request

Note1: MEG250AE is sold as a single unit, for a complete route you need at least two units.
Note2: Please order a power supply separately if needed

Accessories

  Product     Code   Unit price   Quantity

  VDSL2 Mini Modem, 100 Mbit/s Ethernet Extender over Copper - Desktop, 2 wires, 100Mbps, 90-240 VAC
VDSL2 Mini Modem, 100 Mbit/s Ethernet Extender over Copper
  MEG101AE-R4
On request

  VDSL2 Switch - (2) Ethernet 10/100/1000, (8) VDSL2 + 8 Phone Ports
VDSL2 Switch
  MEG821AE
On request
