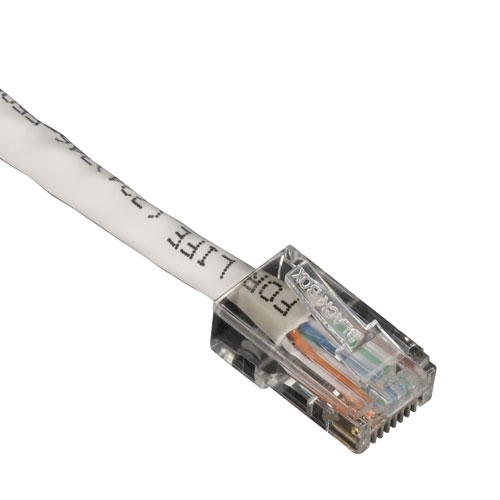

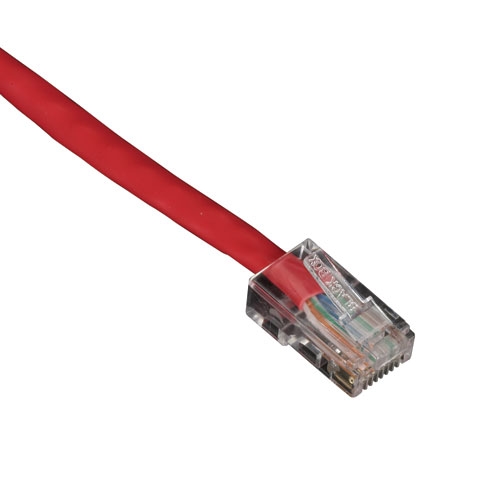

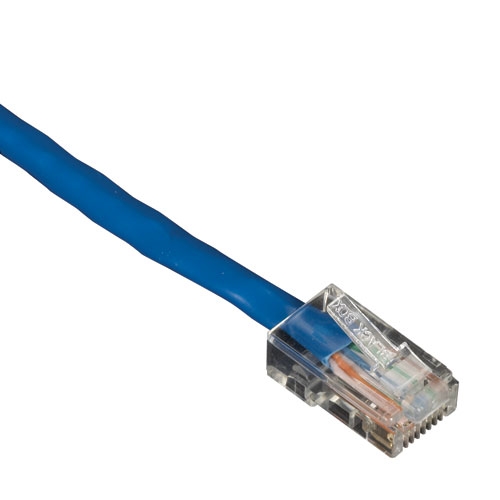

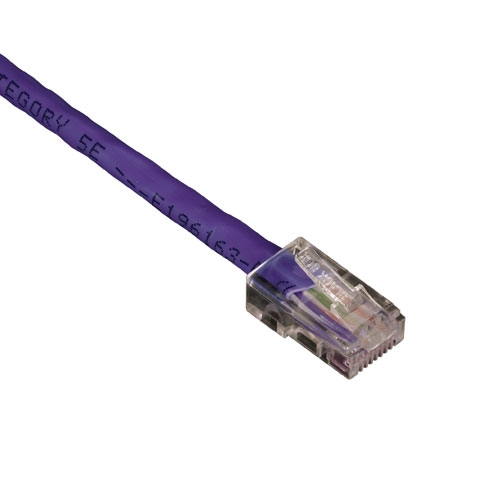

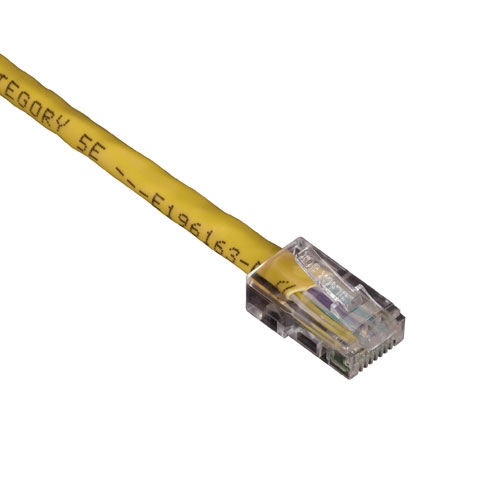

These cables are tested to 350 MHz and are specially designed for use with other GigaBase® Components.Specifications meet or exceed current CAT5e standards and the cables have stranded conductors for optimized flexibility.Superior construction offers significant headroom, tuned-plug design maintains a tighter twist and reduces noise.Enhanced performance parameters and electrical characteristics.Improved near-end crosstalk (NEXT) compared to standard Category 5e cable.Quantity discounts and 25-packs are available upon request.
Attenuation (Maximum) — 24.2 dB/100 m @ 100 MHz; 49.3 dB/100 m @ 350 MHz Cable Type — 4-pair UTP Conductor Gauge — 24 AWG, stranded, tinned copper Frequency — Up to 350 MHz Impedance — 100 ± 15 ohms NEXT (Minimum) — 40.3 dB/100 m @ 100 MHz; 32.2 dB/100 m @ 350 MHz PS-NEXT (Minimum) — 38.3 dB/100 m @ 100 MHz; 30.2 dB/100 m @ 350 MHz Return Loss (Minimum) — 20.1 dB/100 m @ 100 MHz; 16.3 dB/100 m @ 350 MHz Standards — TIA/EIA-568-B.2 Category 5e
