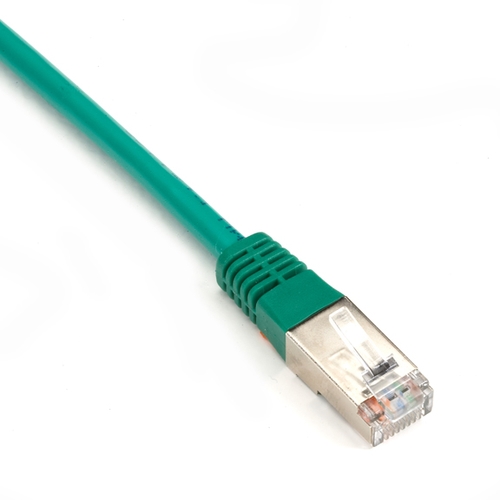

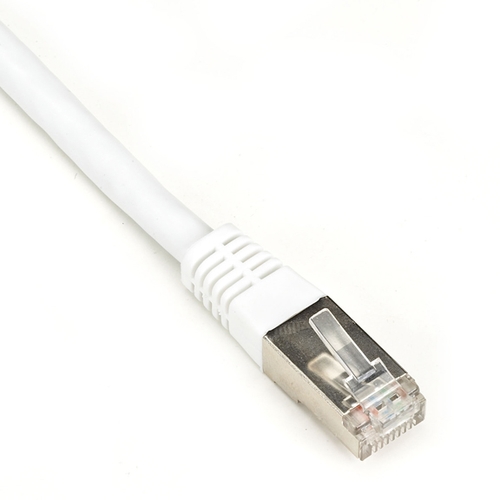

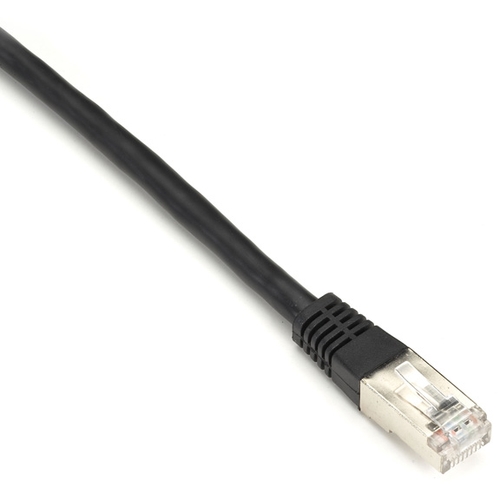

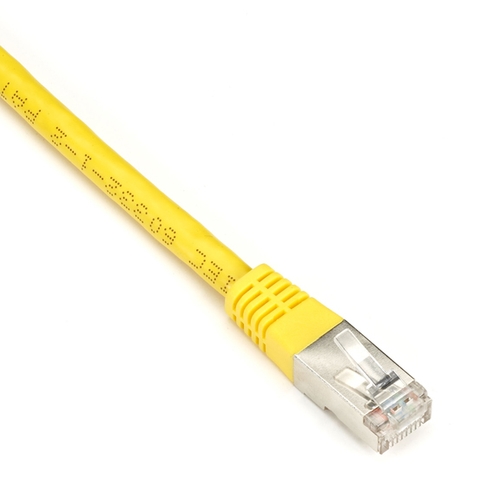

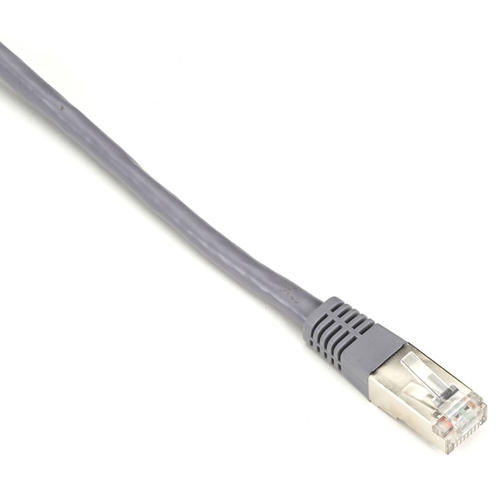

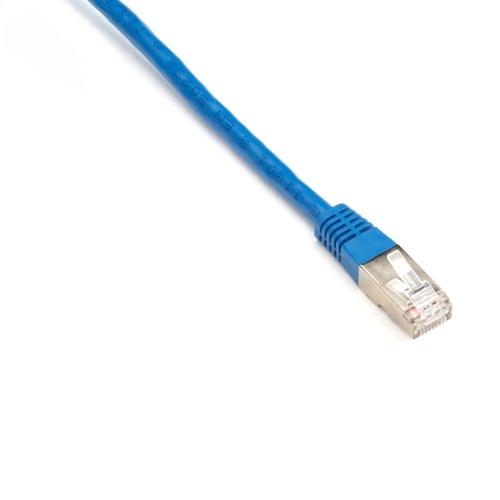

Black Box Shielded CAT5e patch cables are constructed to ensure the performance of your Fast Ethernet network in high noise environments: They feature four twisted pairs with Mylar tape, a drain wire and an overall aluminum/Mylar shield to protect against EMI/RFI interference that can distort or destroy your data.
Tested to CAT5e standard 100-MHz performance, these cables meet or exceed the industry spec, ensuring the transmission of your voice, data or audio/video signal. They feature plugs with 50-micron gold-plated contacts for superior conductivity. These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature molded slimline boots that provide extra strain relief for high-density applications.
Available in a variety of lengths and colors, Black Box’s line of F/UTP CAT5e cabling gives you the flexibility to build your install however you want.
Approvals RoHS, CE, UL/cUL Standards TIA/EIA-568-B.2 Category 5e Connector 1 RJ-45 Male Connector 2 RJ-45 Male Connector Plating 50u Cable Jacket Type CM PVC Cable Type Stranded Conductor Gauge 26 AWG Shielded F/UTP Snagless Connector No Frequency Up to 100 MHz Attenuation (Maximum) 22.5dB at 100MHz Impedance 100+/-15 ohms NEXT (Minimum) 35.3dB at 100MHz PS-NEXT (Minimum) 32.3dB at 100MHz Return Loss (Minimum) 19dB at 100MHz
